Fractional Distillation Equipment

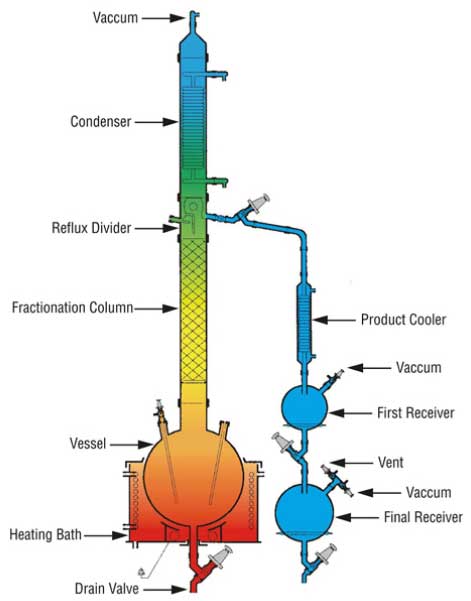

This is a general purpose batch distillation unit to be operated under vacuum.

Heating bath heats and evaporates the content of the vessel. Vapours enter in to the packed column and get fractionated. Vapours of low boiling liquid enter into condenser, get condensed and collected into the twin receivers. From the final receiver distillate can be removed without breaking the vacuum.

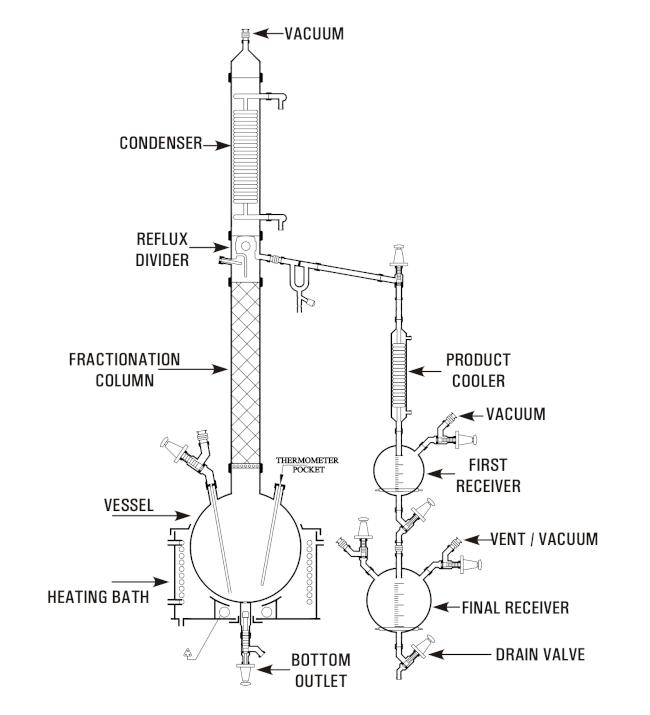

The unit is complete with a spherical vessel, drain valve, heating bath, thermometer pocket, liquid inlet, packed column, a coil condenser, product cooler, and twin receivers.



Unit Cat.Ref.
Reactor capacity
Bath KW
Packed Column
Vapour Line
Condenser HTA Mē
Cooler HTA Mē
Receiver Size
BFDU20
20L
4.5
80mm x 1m
80DN
0.35
0.1
2L,5L
BFDU50
50L
6
100mm x 1m
100DN
0.5
0.2
5L,10L
BFDU100
100L
9
150mm x 1m
150DN
1.5
0.35
10L,20L
BFDU200
200L
12
150mm x 1m
150DN
1.5
0.35
10L,20L
BFDU300
300L
15
225mm x 1m
225DN
2.5
0.5
20L,50L
BFDU500
500L
18
225mm x 1m
225DN
2.5x2
0.5
50L,100L
