Jacketed Pipe Sections - Glass Jackets



For heating of piping and for controlling the temperature throughout the column the jacketed pipe sections are provided. Glass jacket is sealed to the pipe section using Viton O ring and other sealing compositions. The seal prevents impermissibly high stresses between two tubes and allows the movement, which comes due to thermal expansion. Maximum operating pressure in the jacket :

DN 80 DN 150 1.0 bar
DN 225 DN 300 0.5 bar

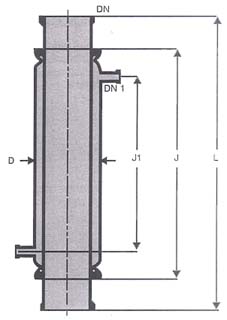

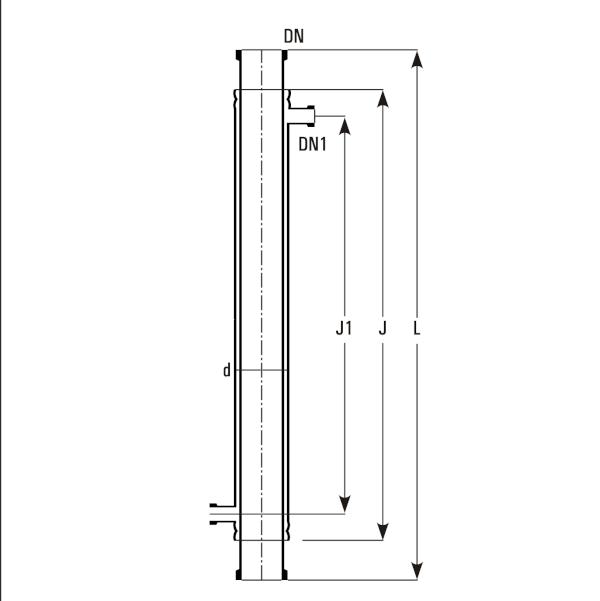

Cat. Ref.
DN
L
d
DN1
J
J1
PSD3/1000
80
1000
100
25
850
750
PSD4/1000
100
1000
150
25
850
750
PSD6/1000*
150
1000
225
25
850
750
PSD9/1000
225
1000
300
25
850
750
PSD12/1000
300
1000
400
25
850
650
