Reaction Equipment



This is a general purpose batch reaction distillation unit to be operated at atmospheric pressure or vacuum.

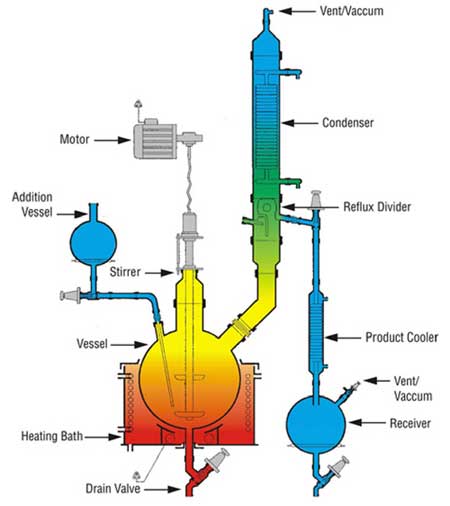

While heating bath heats and evaporates the contents of the vessel, the stirrer agitates to avoid heat spots. Vapors enter the condenser through reflux divider and get condensed. The condensate is then cooled by a product cooler and collected into a receiver.

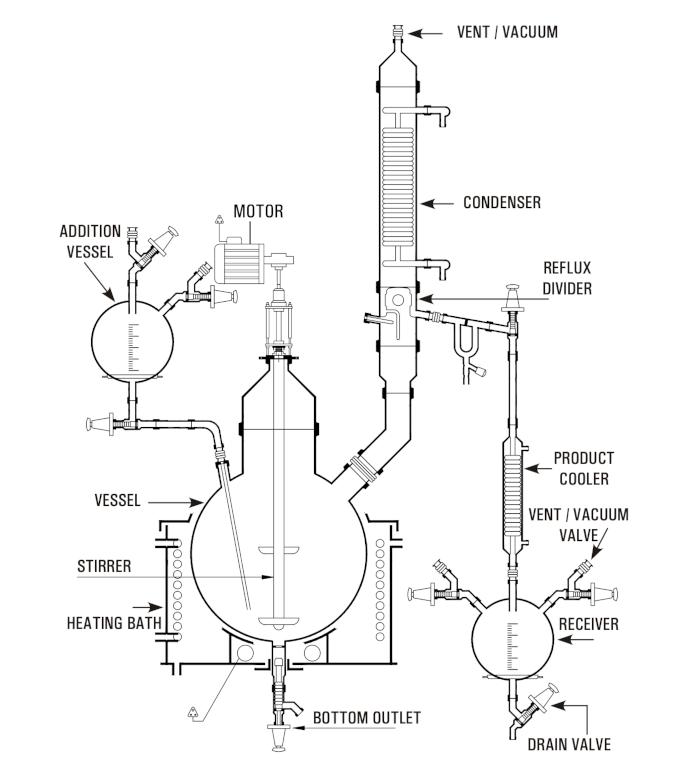

The unit is complete with a spherical vessel, drain valve, heating bath, thermometer pocket, liquid additional vessel, stirring assembly with drive, coil condenser, reflux divider, product cooler and receiver with drain valve.

The unit is available in vessel size of 20, 50, 100, 200, 300, 500 Lts.


Unit Cat.Ref.
Reactor capacity
Bath KW
Addition Vessel
Vapour Line
Condenser HTA Mē
Cooler HTA Mē
Receiver Size
BRDU20
20L
4.5
2L
80DN
0.35
0.1
5L
BRDU50
50L
6
5L
100DN
0.5
0.2
10L
BRDU100
100L
9
10L
150DN
1.5
0.35
20L
BRDU200
200L
12
20L
150DN
1.5
0.35
20L
BRDU300
300L
15
20L
225DN
2.5
0.5
50L
BRDU500
500L
18
50L
225DN
2.5x2
0.5
100L
