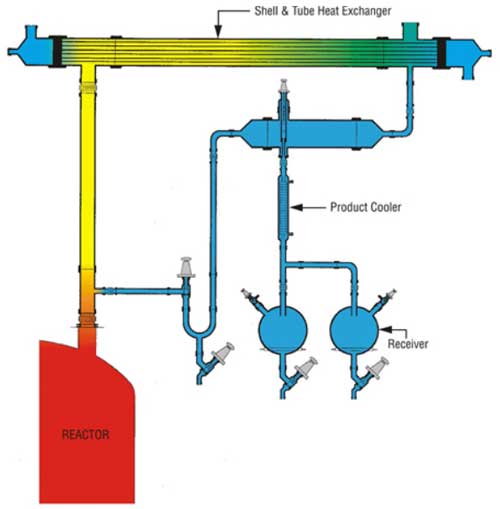

Shell & Tube Heat Exchangers Over GLR



Glass Shell & tube heat exchangers can be used for condensation, vaporization, cooling and heating. They have come out to be more advanced and beneficial for its following advantages :-
  • Higher Heat Transfer area in one unit
  • Less pressure drop.
  • Stuffing box sealing allows easy tube replacement
The Shell & Tube Heat Exchangers are available in various combinations of Glass/Metal, Metal/FRP in Shell & Headers.

Shell & Tube heat exchanger consists of a cylindrical shell which houses a glass tube bundle. Tubes are sealed with shell with the help of PTFE tube sheets. Each tube is individually sealedwith tube sheets at both the ends. Baffles are provided in the shell to maintain state of turbulence of fluid as well as to hold the tubes.

Shell & Tube heat exchanger can be operated within a temperature range of -40 C to 150 C on either side. However, differential temperature should not exceed 120 C at any point. Also, these can be used predominantly under full vacuum, provided differential pressure does not exceed 3 Bar. The range of overall heat transfer co - efficient in the shell & tube heat exchanger in most of the application range between 300 - 900 kcal/m, h,C .These are available in different standard models from 3M to 26M.


CAT REF Glass Shell HTA M shell dia. TOTAL LENGTH
RGG6/331502500
RGG6/551503700
RGG9/662252600
RGG9/10102253820
RGG12/12123002550
RGG12/26263004600
