Following structure fittings are available to use with galvanised tubes in order to form a tubular structure for a glass plant. These fittings are made of cast iron and are suitable to the galvanized tubes described earlier.

These sliding fittings are provided with grub screws to fix it at required position on a galvanised tube.

These fittings are specially made to construct a tubular structure, which provides enough flexibility for future modifications without involving hammering and welding.

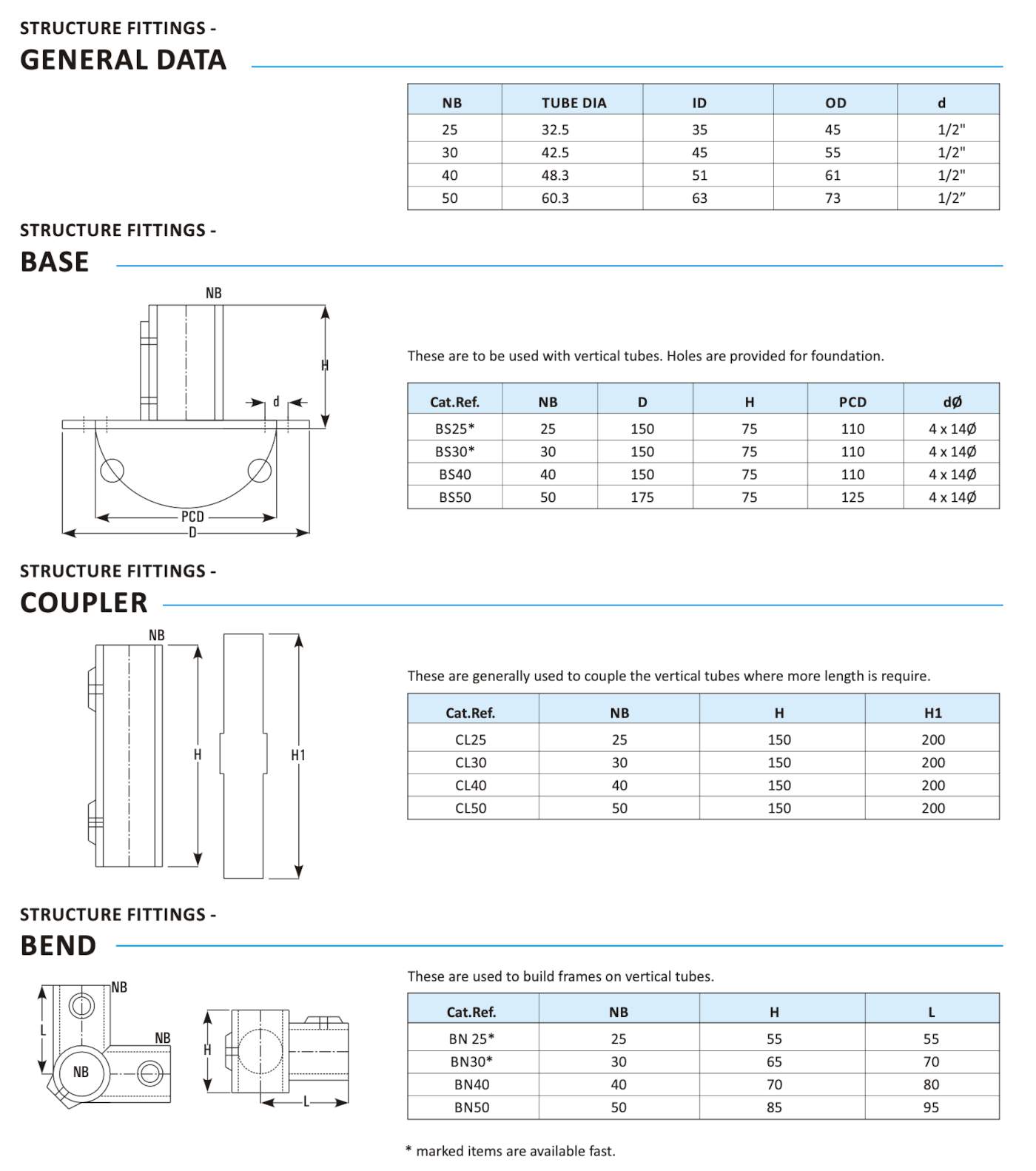

STRUCTURE FITTINGS – GENERAL DATA

NB	TUBE DIA	ID	OD	d
25	32.5	35	45	1/2"
30	42.5	45	55	1/2"
40	48.3	51	61	1/2"
50	60.3	63	73	1/2"

STRUCTURE FITTINGS – BASE

These are to be used with vertical tubes. Holes are provided for foundation.

Cat.Ref.	NB	D	H	PCD	do
BS25*	25	150	75	110	4 x 14ø
BS30	30	150	75	110	4 x 14ø
BS40	40	150	75	110	4 x 14ø
BS50	50	175	75	125	4 x 14ø

STRUCTURE FITTINGS – COUPLER

These are generally used to couple vertical tubes where more length require

Cat.Ref.	NB	H	H1
CL25	25	1650	200
CL30	30	150	200
CL40	40	150	200
CL50	50	150	200

STRUCTURE FITTINGS – BEND
These are used to build frames on vertical on vertical tubes.

Cat.Ref.	NB	H	L
BN25*	25	50	55
BN30*	30	65	70
BN40	40	70	80
BN50	50	85	95

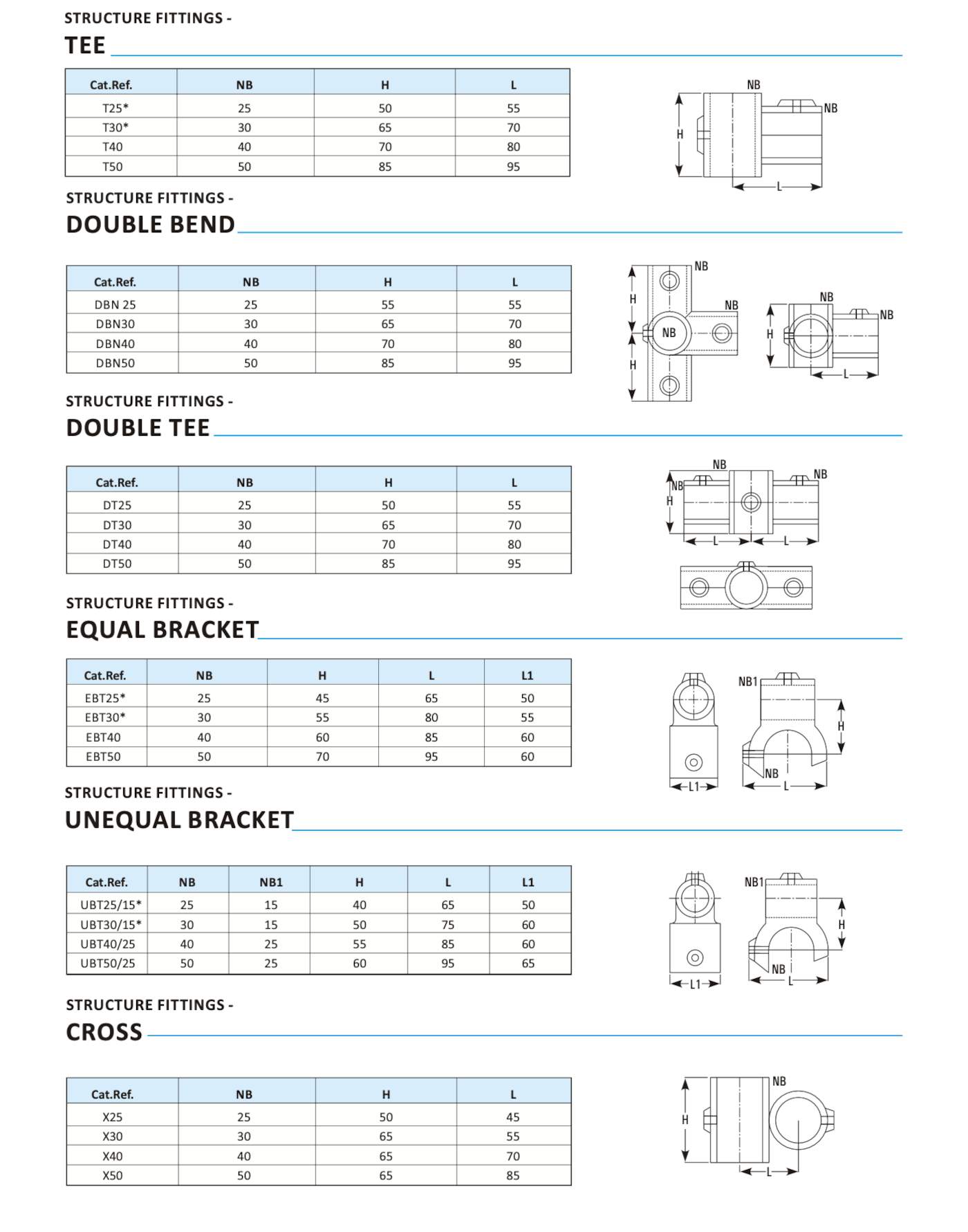

STRUCTURE FITTINGS – TEE

Cat.Ref.	NB	H	L
T25*	25	50	55
T30*	30	65	70
T40	40	70	80
T50	50	85	95

STRUCTURE FITTINGS – DOUBLE BEND

Cat.Ref.	NB	H	L
DBN25	25	50	55
DBN30	30	65	70
DBN40	40	70	80
DBN50	52	85	95

STRUCTURE FITTINGS – DOUBLE TEE

Cat.Ref.	NB	H	L
DT25	25	50	55
DT30	30	65	70
DT40	40	70	80
DT50	50	85	95

STRUCTURE FITTINGS – EQUAL BRACKET

Cat.Ref.	NB	H	L	L1
EBT25*	25	40	65	50
EBT30*	30	52	75	60
EBT40	40	62	85	60
EBT50	50	72	95	60

STRUCTURE FITTINGS – UNEQUAL BRACKET

Cat.Ref.	NB	Nb1	H	L	L1
UBT25/15*	25	15	35	65	50
UBT30/15*	30	15	40	75	60
UBT40/25	40	25	50	85	60
UBT50/25	50	25	55	95	60

div align=center>

STRUCTURE FITTINGS – CROSS

Cat.Ref.	NB	H	L
x 25	25	50	45
x 30	30	65	55
x 40	40	65	70
x 50	50	65	85

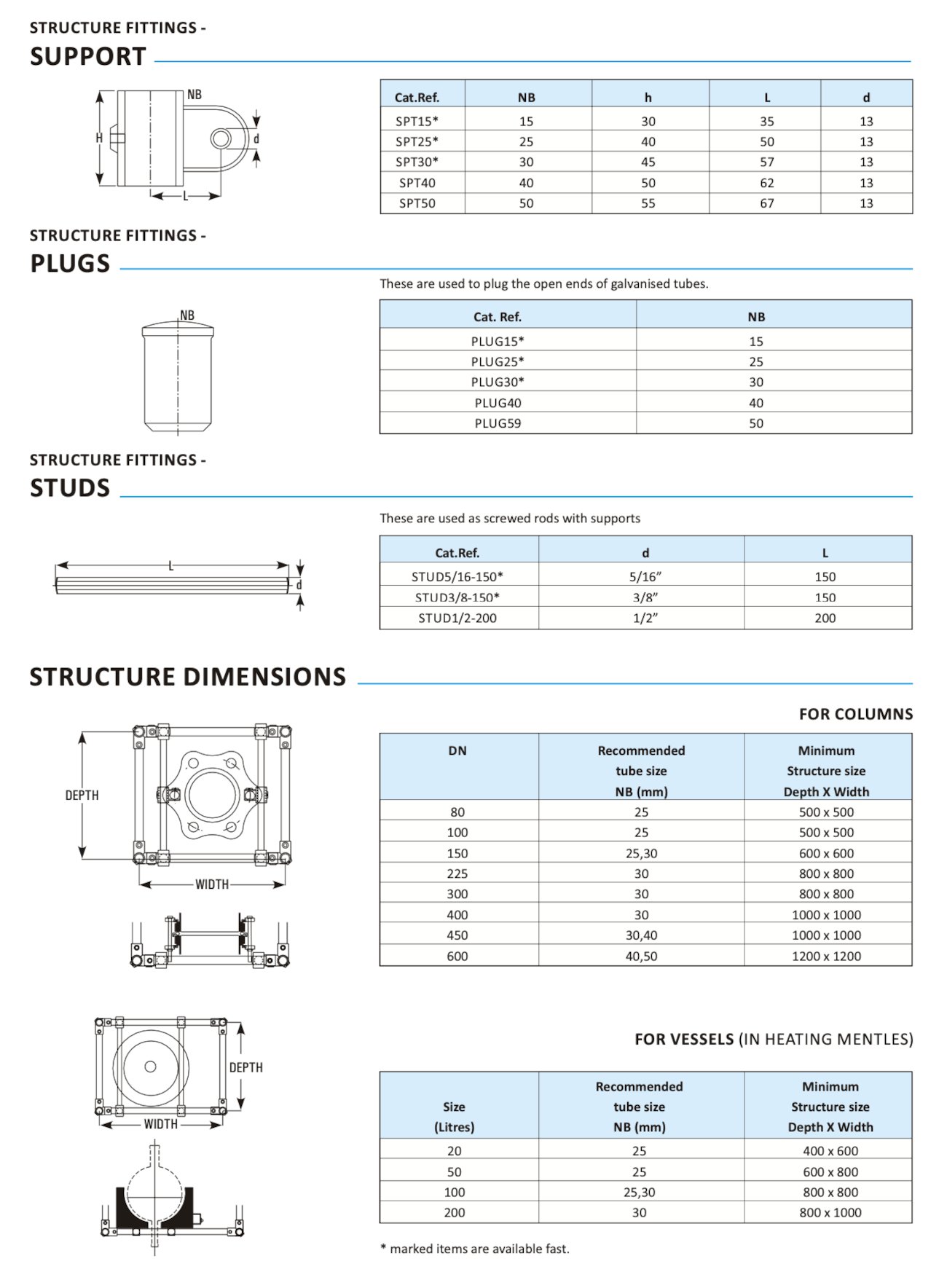

STRUCTURE FITTINGS – SUPPORT

Cat.Ref.	NB	H	L	D
SPT15*	15	40	35	13
SPT25*	25	55	50	13
SPT30*	30	55	57	13
SPT40	40	55	62	13
SPT50	50	55	67	13

STRUCTURE FITTINGS – PLUGS

These are used to plug the open ends of galvanised tubes.

Cat.Ref.	NB
PLUG15	15
PLUG25	25
PLUG30	30
PLUG40	40
PLUG50	50

STRUCTURE FITTINGS – STUDS

These are used as screwed rods with supports

Cat.Ref.	d	L
STUD5/16-150	5/16"	150
STUD3/8-150	3/8"	150
STUD1/2-200	1/2"	200
