This is a general purpose reactor, to be operated at atmospheric pressure, or vacuum.

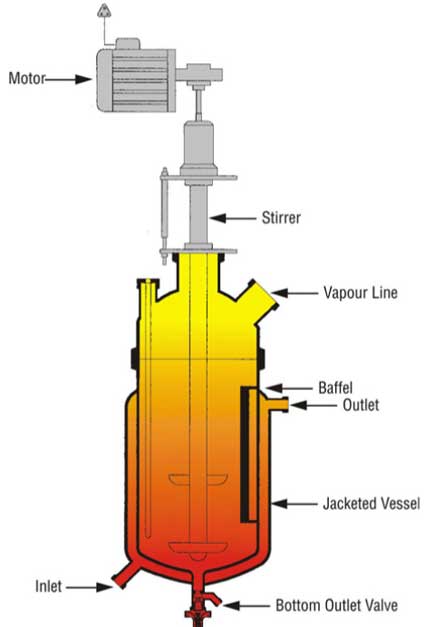

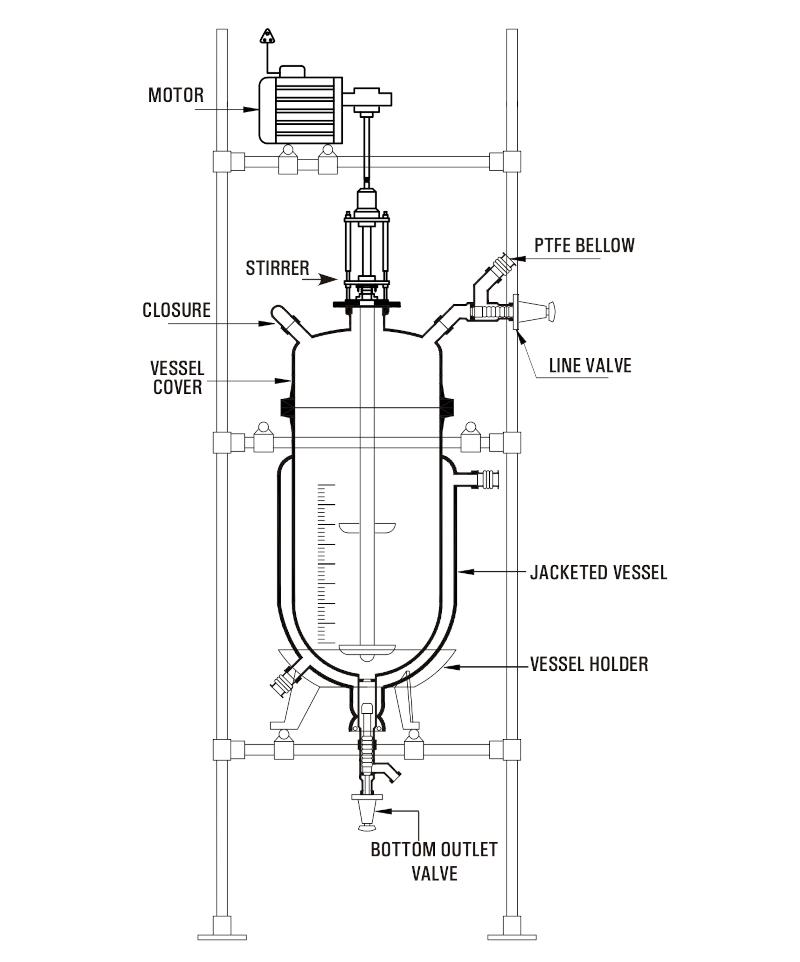

These vessels are provided with jacketed cylindrical vessel, cover, flush bottom valve, thermometer pocket, liquid inlet tube, Gas sparging tube, vent valve, anchor stirrer and mechanical seal.

Other type of stirrer can be provided in place of anchor stirrer on demand.

A battery of 4 PTFE baffles, removable type can be provided.

Condenser assembly as per requirement can be attached ( can be ordered separately ) on the vapour nozzle.

Unit Cat.Ref.	Reactor capacity	DN	Jacket Capacity	Vapour Nozzle
JR5	5L	150	3L	40DN
JR10	10L	225	6L	40DN
JR25	25L	300	10L	50DN
JR50	50L	400	20L	80DN
JR100	100L	450	40L	80DN
