Reaction Distillation Equipment

This is a general purpose batch reaction distillation unit to be operated at atmospheric pressure, or vacuum.

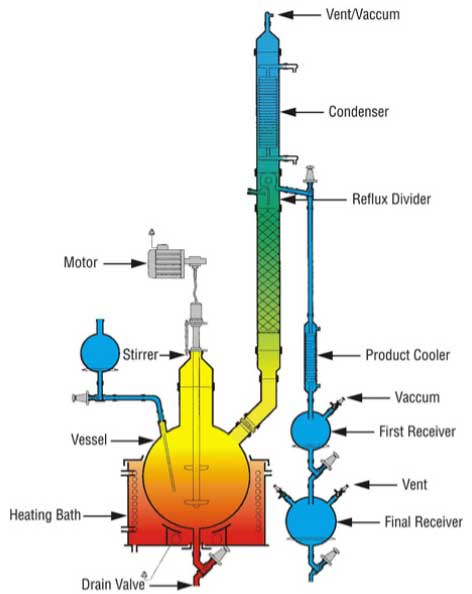

Heating bath heats and evaporates the contents of the vessel. The stirrer agitates to ensure uniform stirring, heat distribution and to avoid heat spots. Vapors enter into the packed column and get fractionated. Vapors of low boiling liquid enter into condenser, get condensed and collected in twin receivers. From the final receiver, distillate can be removed without breaking the vacuum.

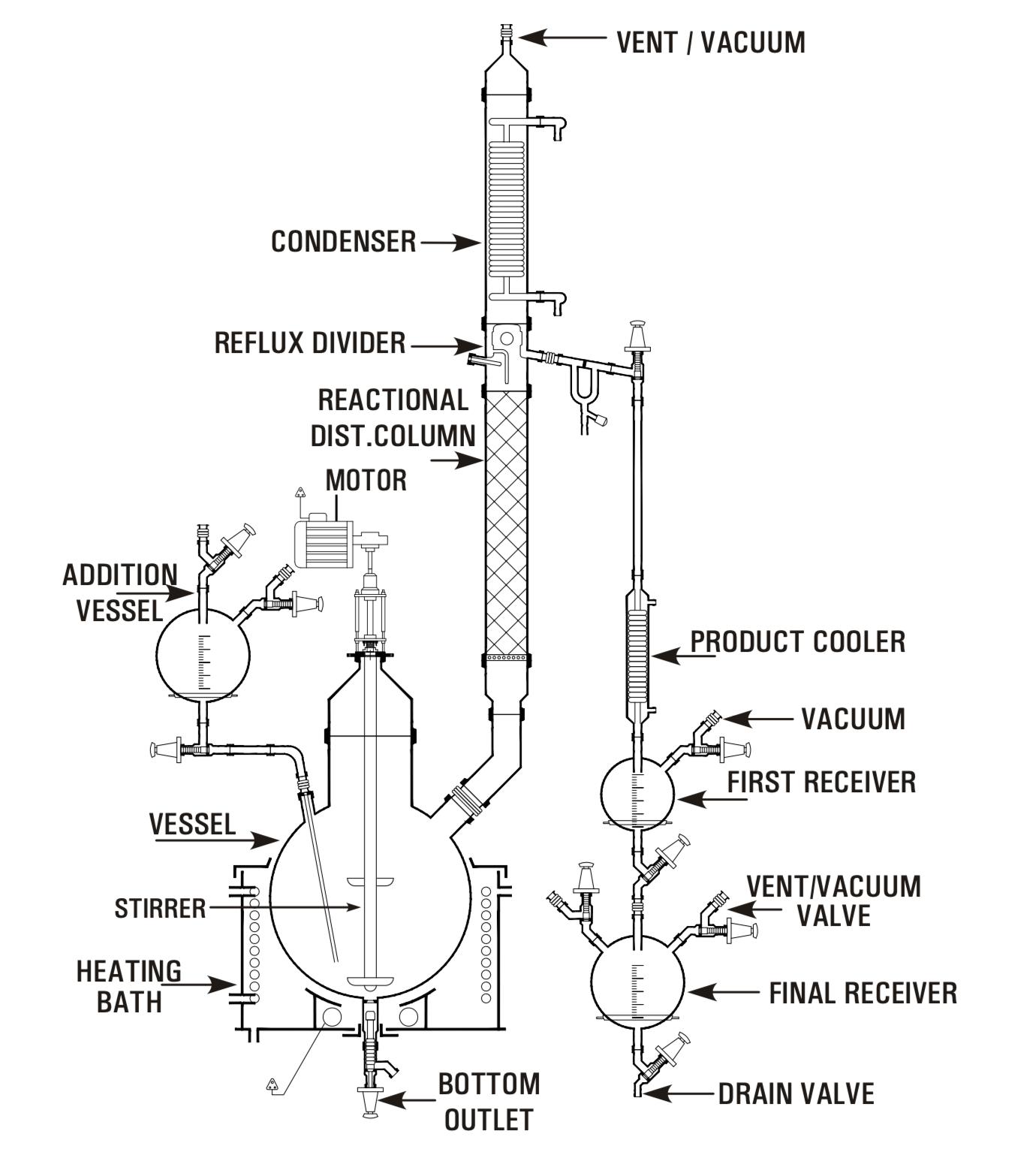

The unit is complete with a spherical vessel, drain valve, heating bath, thermometer pocket, liquid addition vessel, agitator, packed column, coil condenser, product cooler and twin receivers.

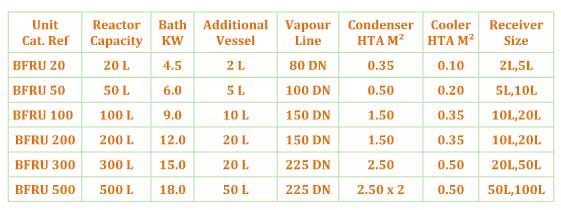

The unit is available in vessel size of 20, 50, 100, 200, 300, 500 Ltr.
